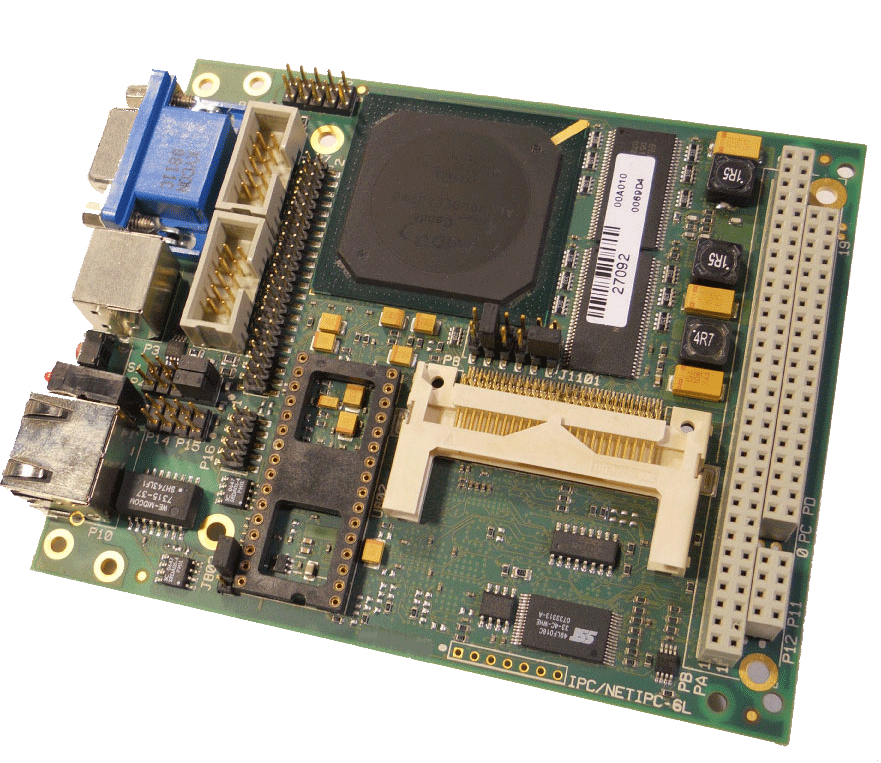

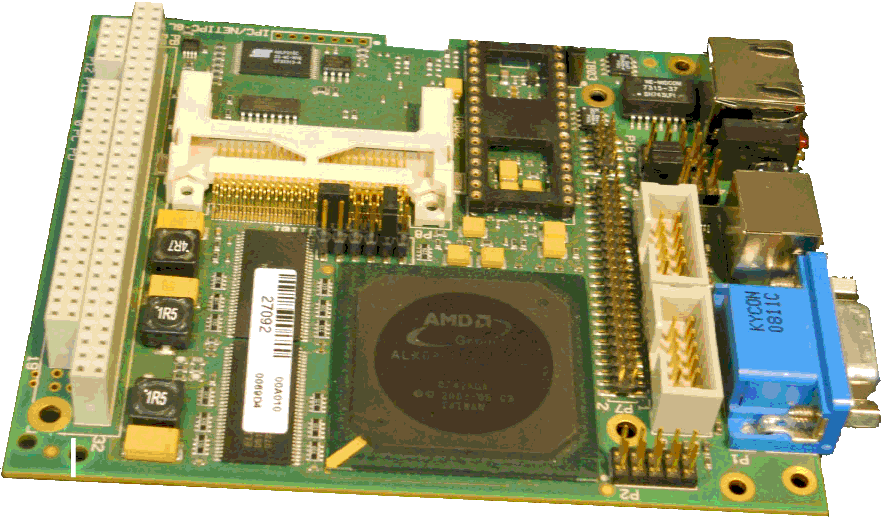

Industrial PC/104 with AMD Geode (LX800) processor
fan less · maintenance free · long term availability – easily extendable
Embedded System Legacy Design - Please Note: Due to the tremendous shortage in the supply change of semiconductors, these units can have an extended lead time. Please get in touch with us for lead time and new designs.
This high-performance and power-saving LX800 AMD processor has been especially developed for the industrial application. The widely used PC/104 based CPU platform is applicable in various industrial equipment and offers an excellent basis for any fan less and entirely closed off device. All interfaces are ESD protected. The board carries various additional industrial features such as watchdog, temperature control, etc. Possible operating systems are MS-DOS, Linux, Windows XPe or vxWorks and RTKernel.
Operating system
- BSP for Windows XP embedded
- BSP for Windows embedded CE
- BSP for Linux
- BSP for OS-9
- BSP for VxWorks
- BSP for MS-DOS
System
- AMD Geode LX Processors, up to 600 MHz - 1200 Mips
- Up to 512 MB DDR-SDRAM
- 128 kB L1 Cache, 128 kB L2 Cache
- Up to UXGA TFT-Resolution
- Ethernet 10/100 MBit (INTEL 82551)
- Mouse/Keyboard
- 2 x USB 2.0
- Audio Port AC97
- Socket for Compact Flash
- IDE Interface
- 2x RS232
- Socket for SRAM, NVRAM, EEPROM, (DiskOnChip)
- Power Consumption typ. 6.5 Watt (IPC/NETIPC-6A)
- PC/104 Bus Interface
- Extended temperature -40 to +85°C
- RTC, Watchdog, Temperature supervisor
- All interfaces ESD Protected
- 72 hours Burn-in tested
