Industrial compact PC Systems with Atom™ processor

fan less · maintenance free · long term availability

Embedded System Legacy Design - Please Note: Due to the tremendous shortage in the supply change of semiconductors, these units can have an extended lead time. Please get in touch with us for lead time and new designs.

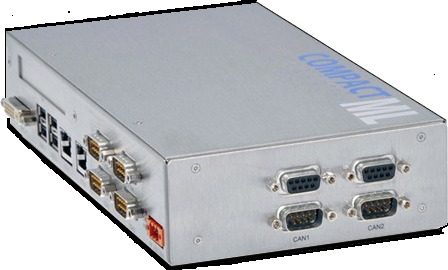

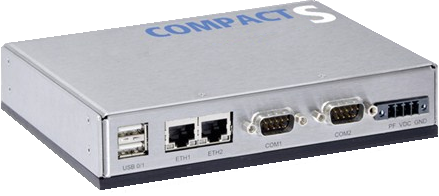

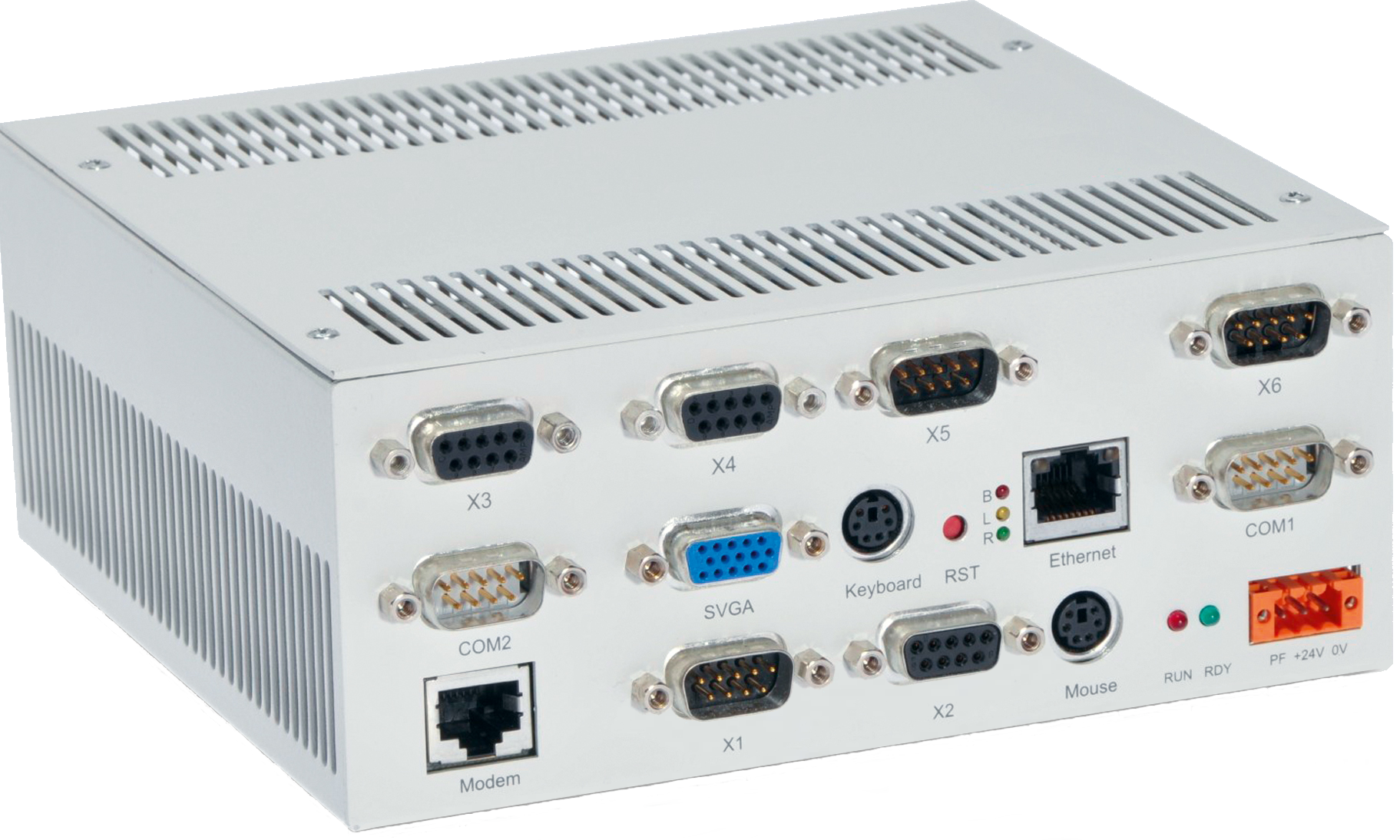

This new computer generation is flat, fan less, entirely closed off and wireless by character. The large front offering many access possibilities is an advantage. The computer is furnished with an ATOM Z510,530,E640 or E680 processor by Intel which provides an ideal platform for Linux or Windows XP and CE embedded and other RTOs based applications. It is robust and uncompromising industrial version allows implementation in the most demanding applications and warrants long-term availability.

System –SL and –ML configuration

Low power, high performance Intel Atom Z510, Z530, E640 or E680 processor, CPU Speed from 1.0 GHz to 1.6 GHz
Up to 2 GB DRAM on board soldered
2 x Ethernet 10/100/1000 MBit
4 x USB
Socket for CFast Flash
SATA Interface or IDE Interface
4x RS232
RS485 (optional)
2x CAN SJA1000 isolated (optional)
PC/104 and separated PC/104+ Slot
10...30VDC Power Supply (optional isolated)
Intelligent power management
RTC, Watchdog, temperature monitoring
ESD protected

Operating system

BSP for Windows embedded standard 2009
BSP for Windows embedded standard 7
BSP for Windows embedded CE (on request)
BSP for Linux

All ML Systems can be configured with additional PC/104 (ISA) or PC/104+ (PCI) IO cards Please tell us your needs!

Features and Order Information

Please use part number (PN) in the Feature table for order information.

Get in Touch

For your questions and inquiries

Autotransformer

An autotransformer has a single winding with two end terminals and one or more terminals at intermediate tap points. It is a transformer in which the primary and secondary coils have part of their turns in common. The portion of the winding shared by both the primary and secondary is the common section. Autotransformers have no galvanic isolation!

Isolation Transformer

An isolation transformer is a transformer used to transfer electrical power from a source of alternating current (AC) power to some equipment or device while isolating the powered device from the power source, usually for safety reasons (or to reduce transients and harmonics). Isolation transformers provide galvanic isolation. Therefore no conductive path is present between the source and the load.

Toroidal Transformer

A toroidal transformer is an electrical transformer constructed with a torus or donut-shaped core. Its primary and secondary windings are wound across the entire surface of the torus core, separated by an insulating material. This configuration minimizes the magnetic flux leakage. All Ascend Electronics toroidal transformers are constructed as isolation transformers.

Air-Core Transformers

Air-core transformers are designed to transfer energy or radio-frequency currents (currents used for radio transmission). Air-core transformers consist of two or more coils wound around a solid insulating substance or on an insulating coil form and have no magnetic core. Therefore, air-core transformers have a weak energy transmission ratio.

Transformer Design Expressions

Transformer Efficiency

The ratio of a transformer's output power to its input power is known as transformer efficiency. The effect of transformer losses is measured by transformer efficiency, typically expressed as a percentage.

Transformer Voltage Regulation

Transformer voltage regulation is the ratio or percentage value by which a transformer's output terminal voltage varies either up or down from its no-load value due to variations in the connected load current.

Ambient Operating Temperature

The ambient temperature is the temperature at a location not affected by the heat generated by the transformer itself.

Transformer Temperature Rise

Transformer temperature rise is defined as the average temperature rise of the windings above the ambient (surrounding) temperature when the transformer is loaded at its nameplate rating.

High Voltage Isolation Class

The high-voltage isolation class is used during the transformers' high-pot tests. High-pot (High Potential) tests, also known as dielectric withstand tests, are used to apply high voltage to assets to determine the adequacy of the electrical insulation to withstand voltage transients and ensure the insulation is not marginal. In addition, the voltage class is used to define high-voltage potential differential operation between primary and secondary.

Input Waveforms

The transformer induces power or signal voltage waveforms for each secondary output. The resulting output waveform will be the same shape and frequency as its input waveform. Note that all transformers have bandpass characteristics, meaning they have a low-end and high-end frequency roll-off. Therefore for transformers outside the standard AC power line (50Hz to 400Hz), such as audio (20Hz-20kHz) and switching (1kHz to 10MHz), the minimum and maximum frequency of the bandwidth must be specified, in addition to the input waveform, such as pulse (square) or sinus.
