Hydra-Frontier

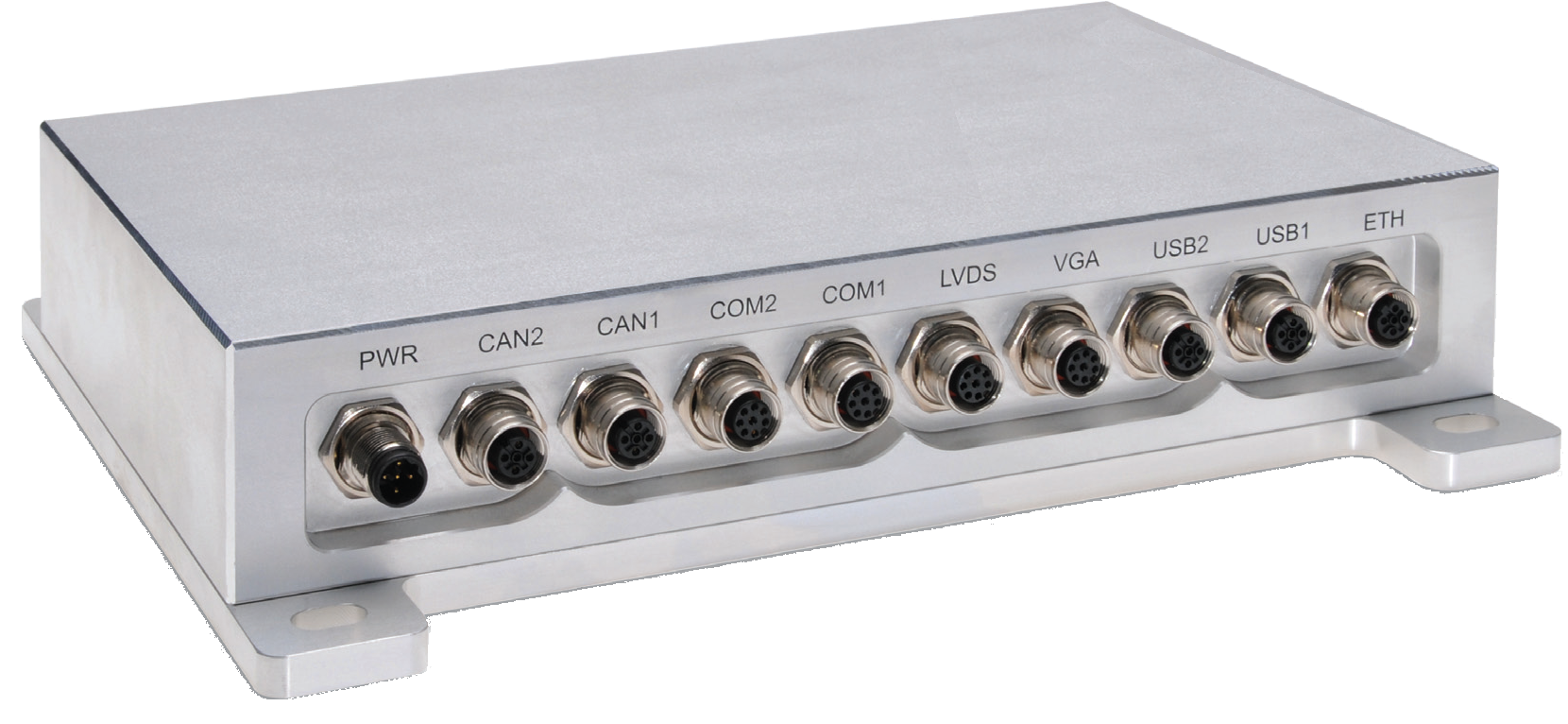

Ultra Rugged Industrial compact PC with Atom™ processor

Embedded System Legacy Design - Please Note: Due to the tremendous shortage in the supply change of semiconductors, these units can have an extended lead time. Please get in touch with us for lead time and new designs.

The Frontier Series raised the bar for ultra robust and extreme rugged industrial computers. The housing made of tough anodized aluminum is resistant to dust, water and chemicals and thus qualifies for Protection Class IP67. Within the housing, Hydra-Frontier units can boast of having one of the new scalable Queens Bay platforms from Intel. In addition, all Hydra-Frontier computers feature a realtime clock (RTC) supported with a maintenance-free Gold Cap capacitor, and they further stand out with their use of the very latest connector technology that withstands even high levels of shock and vibration.

System

Low power, high performance Intel Atom processor
Up to 2 GB DRAM on board soldered
Ethernet 10/100/1000 MBit
4 x USB
Socket for SD Card
SATA Interface
2x RS232
RS485 (optional)
2x CAN SJA1000 isolated (optional)
VGA
FPD Link II
Socket for SRAM, DiskOnChip, EEPROM
..30VDC Power Supply (optional isolated)

Operating system

BSP for Windows embedded Standard 7
BSP for Windows embedded Standard 2009
BSP for Windows embedded CE 6 (on request)
BSP for Linux (on request)

Features

Rotary Hex-Switch for user defined configuration
RTC, Watchdog, temperature monitoring
ESD protected

Get in Touch

For your questions and inquiries

Autotransformer

An autotransformer has a single winding with two end terminals and one or more terminals at intermediate tap points. It is a transformer in which the primary and secondary coils have part of their turns in common. The portion of the winding shared by both the primary and secondary is the common section. Autotransformers have no galvanic isolation!

Isolation Transformer

An isolation transformer is a transformer used to transfer electrical power from a source of alternating current (AC) power to some equipment or device while isolating the powered device from the power source, usually for safety reasons (or to reduce transients and harmonics). Isolation transformers provide galvanic isolation. Therefore no conductive path is present between the source and the load.

Toroidal Transformer

A toroidal transformer is an electrical transformer constructed with a torus or donut-shaped core. Its primary and secondary windings are wound across the entire surface of the torus core, separated by an insulating material. This configuration minimizes the magnetic flux leakage. All Ascend Electronics toroidal transformers are constructed as isolation transformers.

Air-Core Transformers

Air-core transformers are designed to transfer energy or radio-frequency currents (currents used for radio transmission). Air-core transformers consist of two or more coils wound around a solid insulating substance or on an insulating coil form and have no magnetic core. Therefore, air-core transformers have a weak energy transmission ratio.

Transformer Design Expressions

Transformer Efficiency

The ratio of a transformer's output power to its input power is known as transformer efficiency. The effect of transformer losses is measured by transformer efficiency, typically expressed as a percentage.

Transformer Voltage Regulation

Transformer voltage regulation is the ratio or percentage value by which a transformer's output terminal voltage varies either up or down from its no-load value due to variations in the connected load current.

Ambient Operating Temperature

The ambient temperature is the temperature at a location not affected by the heat generated by the transformer itself.

Transformer Temperature Rise

Transformer temperature rise is defined as the average temperature rise of the windings above the ambient (surrounding) temperature when the transformer is loaded at its nameplate rating.

High Voltage Isolation Class

The high-voltage isolation class is used during the transformers' high-pot tests. High-pot (High Potential) tests, also known as dielectric withstand tests, are used to apply high voltage to assets to determine the adequacy of the electrical insulation to withstand voltage transients and ensure the insulation is not marginal. In addition, the voltage class is used to define high-voltage potential differential operation between primary and secondary.

Input Waveforms

The transformer induces power or signal voltage waveforms for each secondary output. The resulting output waveform will be the same shape and frequency as its input waveform. Note that all transformers have bandpass characteristics, meaning they have a low-end and high-end frequency roll-off. Therefore for transformers outside the standard AC power line (50Hz to 400Hz), such as audio (20Hz-20kHz) and switching (1kHz to 10MHz), the minimum and maximum frequency of the bandwidth must be specified, in addition to the input waveform, such as pulse (square) or sinus.
