ANALOG OSCILLOSCOPES OPTIO MAXIMA 506142

HIGHLIGHTS

Dual channel 40MHz
5mV/DIV Sensitivity
21 calibrated ranges (main time base)
10 times sweep magnification
Signal delay time
TV synchronization; X-Y mode
High illumination internal graticule CRT
Reliable and durable encoded switch
Fully sealed durable attenuation switch
ALT triggering function, enabling simultaneous observation of two independent signals
Built-in 6-digit frequency counter

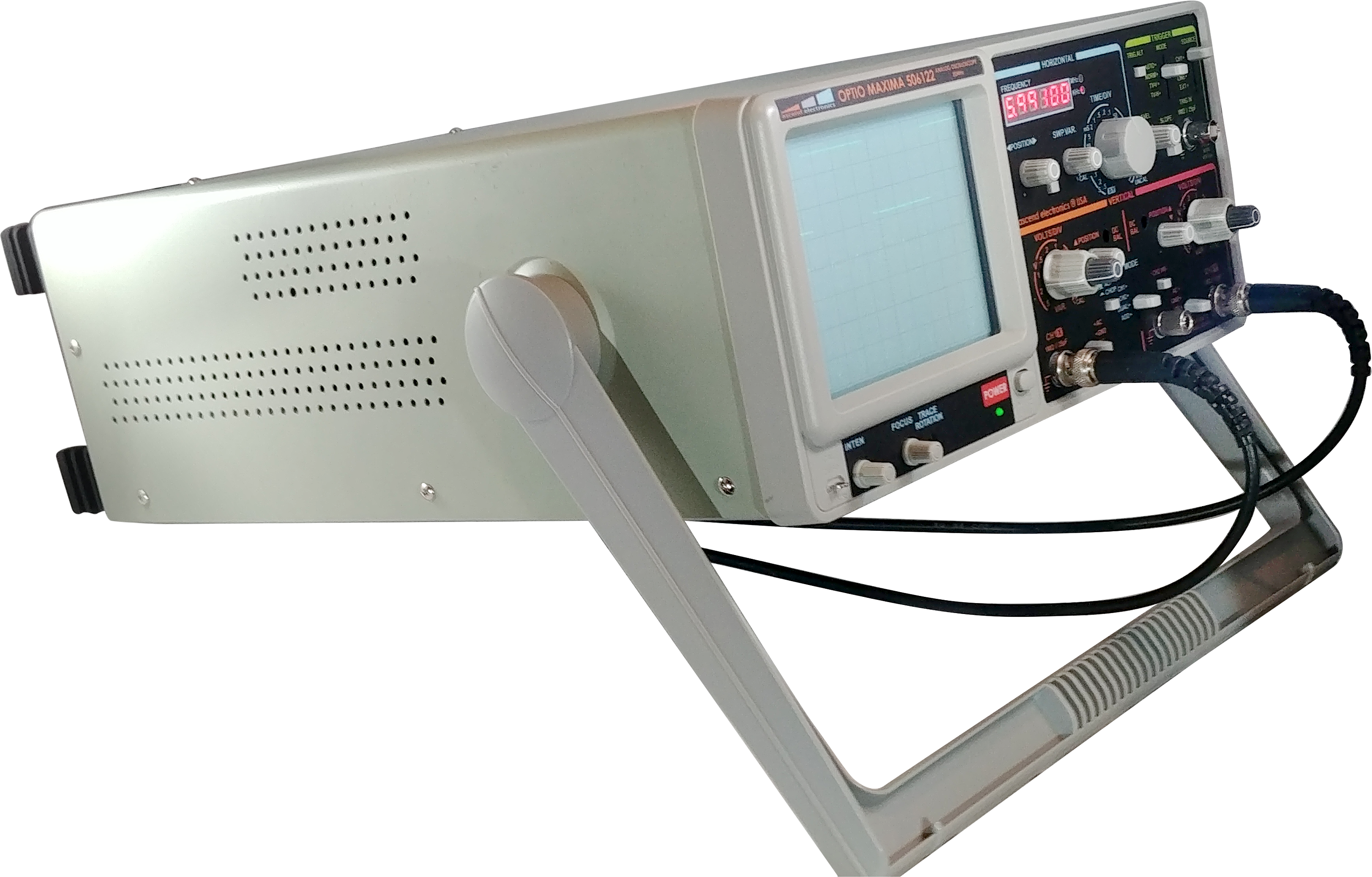

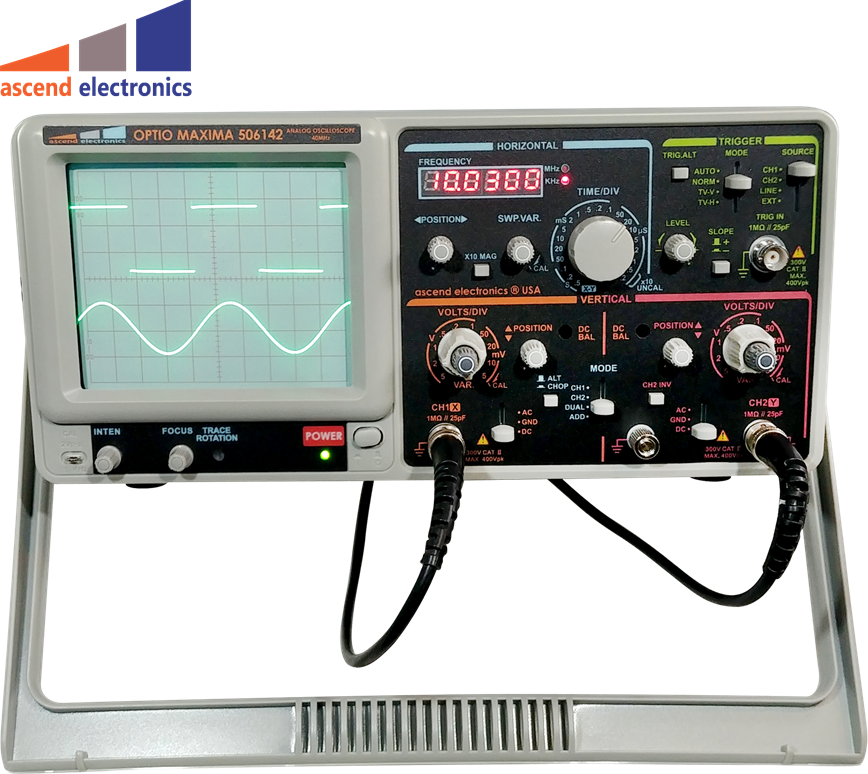

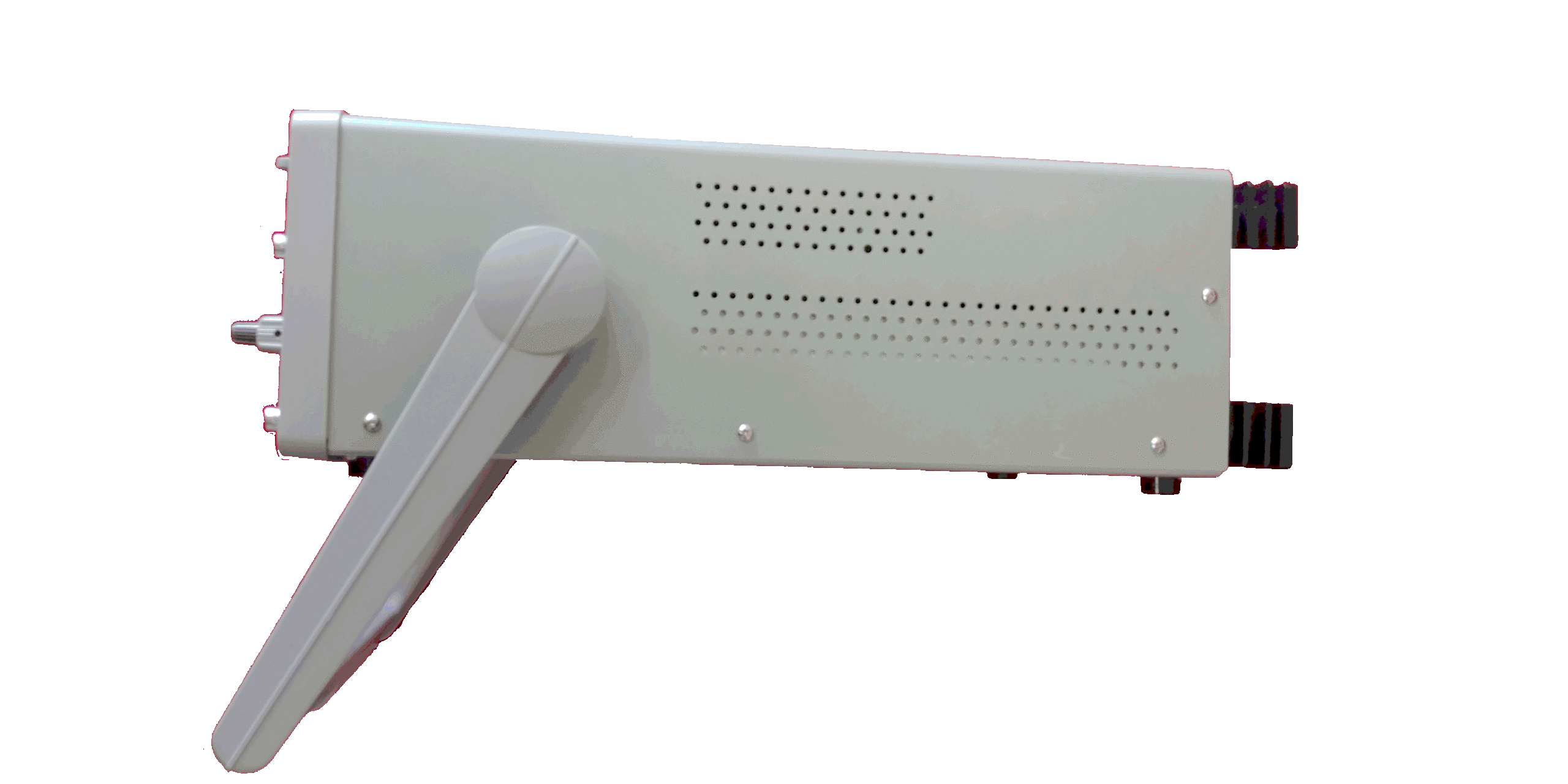

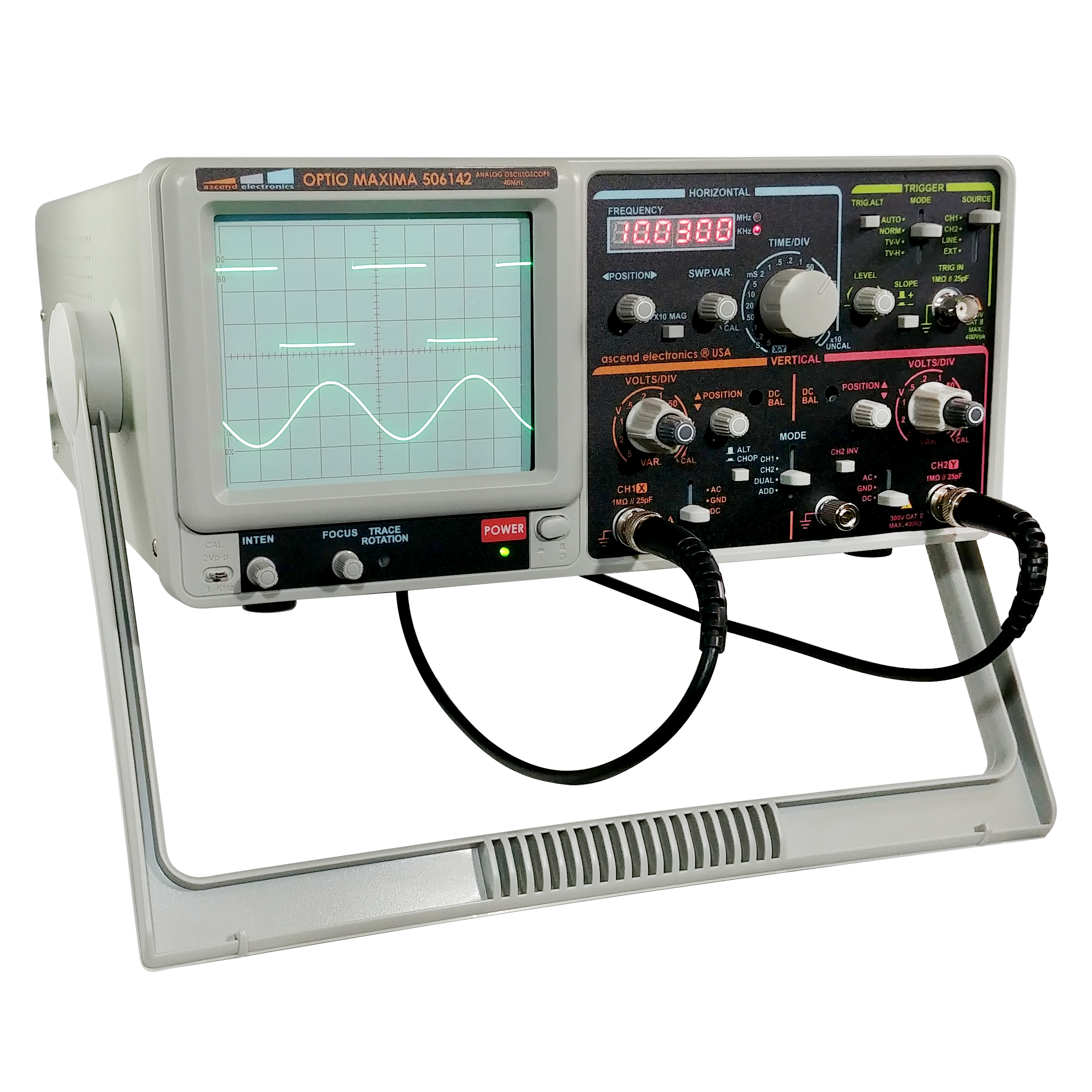

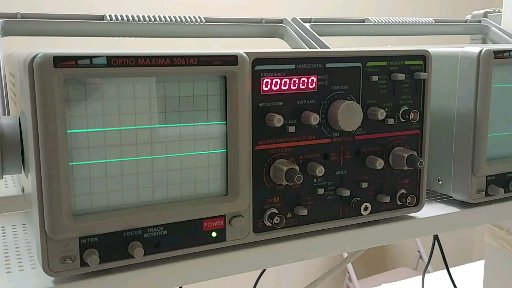

OPTIO MAXIMA 506142

click on image to enlarge

click on image to enlarge

If you are looking for an easy to use precision general-purpose analog oscilloscope the Ascend Electronics’ OPTIO MAXIMA 506142 series are an excellent choice. The portable oscilloscope OPTIO MAXIMA 5061X2 are a High Sensitivity True Analog Oscilloscope, lightweight, features high accuracy, & reliability. It is a great tool for scientific research, product development, school, college, and many professional applications.

Product Name: OPTIO MAXIMA 506142
Brand Name: Ascend Electronics
Part Number: 506142
Place of Origin: USA
Type: 2 CH 40MHz True Analog Oscilloscope
Sensitivity & Accuracy: 5mV/DIV 5mV to5V/DIV, 10 steps in 1-2-5 sequence, ≤3%
Bandwidth: DC to 40MHz
Input Impedance: 1MΩ/. 25pF
Calibrated ranges: 21 main time base
Sweep magnification: 10 times
Input Coupling: AC, GND, DC
Sweep Time Base: 0.2us to 0.5s/DIV, 20 steps in 1-2-5 sequence
Sweep Time Base Accuracy: ±3%, X10MAG: ±5% (20ns~50ns/DIV uncalibrated)
Trigger Mode: AUTO, NORM, TV-V, TV-H
Trigger Source: CH1, CH2, LINE, EXT
TV synchronization: X-Y mode
High illumination internal graticule CRT
Fully sealed durable attenuation switch Calibration Signal: Positive-going square wave, 1kHz
Built-in 6-digit Frequency Counter with display accuracy 0.01%
Power Source Configuration for: AC110V 50/60Hz

Model		OPTIO MAXIMA 506122			OPTIO MAXIMA 506142		OPTIO MAXIMA 506152
Vertical system
Sensitivity		5mV to5V/DIV, 10 steps in 1-2-5 sequence
Sensitivity Accuracy		≤3%
Vernier Sensitivity		1/2.5 or less than panel indicated value
Bandwidth		DC (AC 10Hz) to 20MHz			DC (AC 10Hz) to 40MHz		DC (AC 10Hz) to 50MHz
AC Coupling
Rise Time		Approx. 17.5ns			Approx. 8.75ns		Approx. 7ns
Input Impedance		Approx. 1MΩ//Approx. 25pF
DC Balance Shift		5mV to 5V/DIV: ±0.5DIV
Vertical Mode		CH1, CH2, DUAL (ALT/CHOP), ADD, CH2 INV
Chopping Repetition Frequency		Approx. 250kHz
Input Coupling		AC, GND, DC
Max. Input Voltage		400V peak, AC frequency≤1kHz; IEC 61010 Input Class 300V CAT II
Common Mode Rejection Ratio		>50:1 at 50kHz sine wave (set CH1 and CH2 at same sensitivity)
CH2 INV BAL		Balanced point variation≤1DIV (referred to graticule center)
Horizontal system
Sweep Time Base			0.2us to 0.5s/DIV, 20 steps in 1-2-5 sequence
Sweep Time Base Accuracy			±3%, X10MAG: ±5% (20ns~50ns/DIV uncalibrated)
Vernier Sweep Timebase		≤1/2.5 of panel indicated value
Sweep Magnification			X10 (Max. sweep time base 20ns/DIV)
Position Shift Caused by X10MAG			Within 2DIV at CRT screen center
Linearity			±5%, X10MAG: ±10% (0.2s~1us)
Triggersystem
Trigger Mode			AUTO, NORM, TV-V, TV-H
Trigger Leve Lock			Not provided
Trigger Source			CH1, CH2, LINE, EXT
Trigger Coupling			AC: 20Hz to full bandwidth
Polarity			“+” or “-” polarity
Sensitivity	Frequency		20Hz to 2MHz	2MHz to 20MHz		20MHz to 40MHz		40MHz to 50MHz
	CH1, CH2		1DIV	1.5DIV		2.5DIV		3DIV
	ALT		2DIV	3DIV
	EXT		200mV	800mV
	TV	Sync pulse>1DIV (EXT: 1V)
External Trigger Input			Input impedance: Approx. 1MΩ//Approx. 25pF Max.input voltage: 400V (DC+AC peak), AC frequency≤1kHz
X-Y mode
Sensitivity			5mV to 5V/DIV, ±3%
X-axis Bandwidth			DC to 500kHz (-3dB)
X-Y Phase Error			≤3° at DC~50kHz
Output signal
Calibration Signal	Waveform		Positive-going square wave
	Frequency		Approx. 1kHz
	Duty Ratio		<48:52
	Output Voltage		2Vpp±2%
	Output Impedance		Approx. 1kΩ
Frequency counter
Display			6 digits LED
Display accuracy			0.01%
CRT
Display			6" rectangle, internal graticule, 8x10DIV (1DIV=1cm)
Phosphor			P31
Accelerating Voltage			Approx. 2kV (20MHz); Approx. 12kV (40MHz)
Trace Rotation			Adjustable at front panel
General
Power Source			AC110V/220V±10% selectable, 50/60Hz, Max.35VA

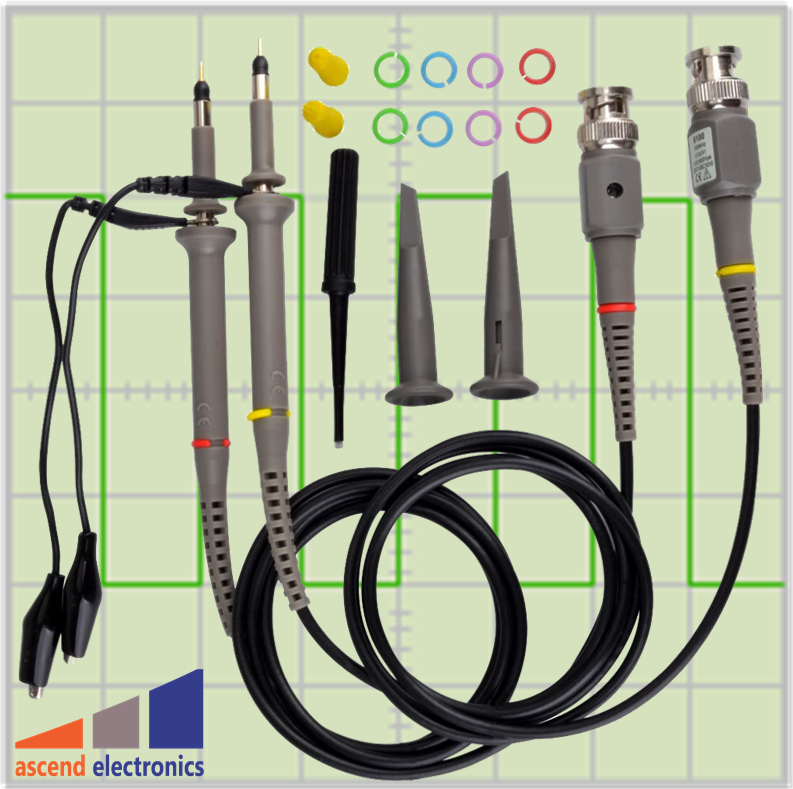

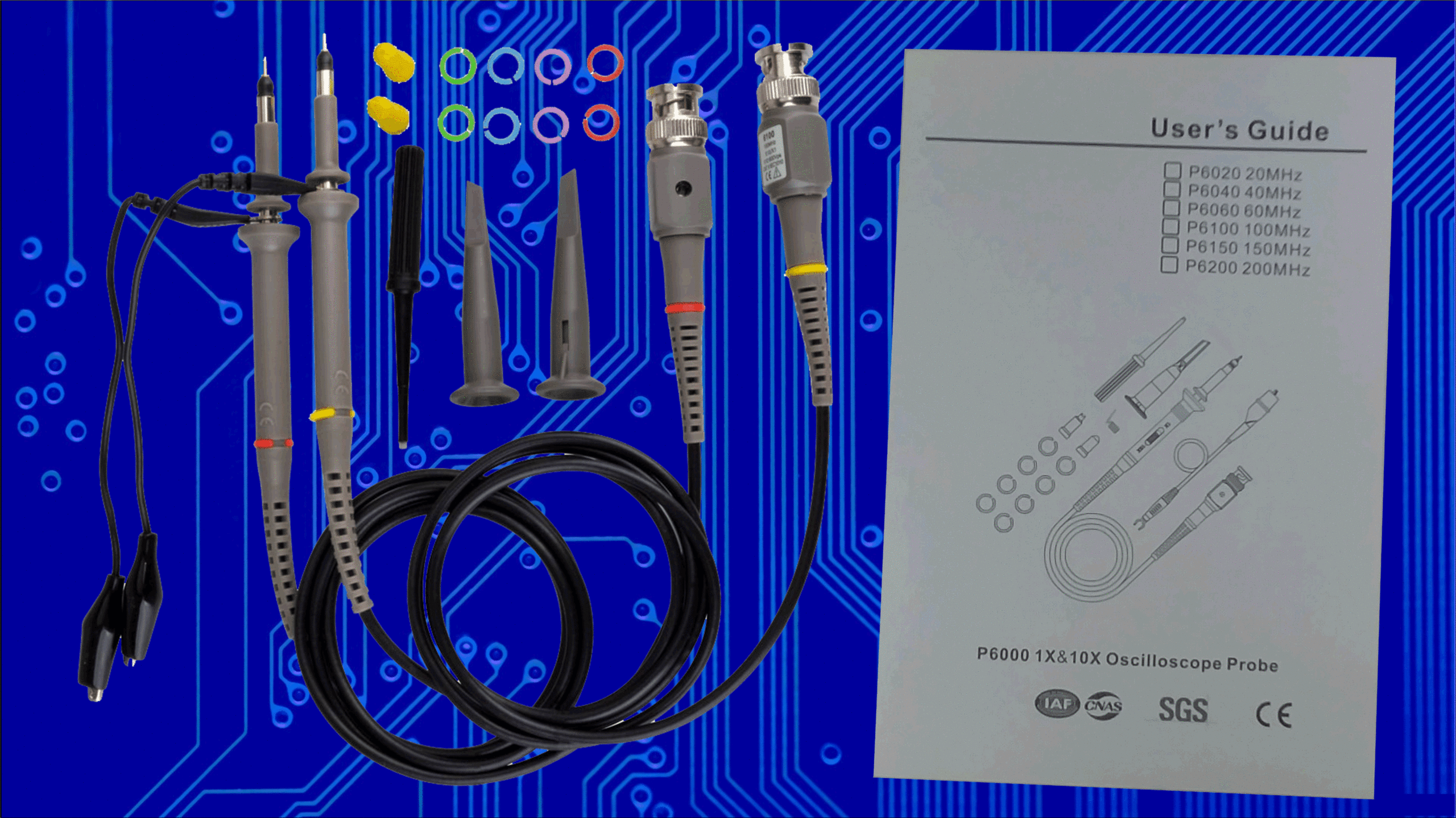

Accessories			Power cord x1, Operation manual x1, Probe x2 Component test lead x1 (only for TOS-2020CT, TOS-2040CT, TOS-2050CT)
Dimension			12.2 x 5.9 x 18Inch (310 x 150 x 455mm)
Weight			18 lbs. (8 kg)

Do not operate in flammable and explosive environment
Keep the product surface clean and dry
Input voltage: AC 115V 10% (United States) 50Hz/60Hz
Operating environment: 32~104°F(0~40°C), & humidity: ≤80%
Storage environment: 14°F~158°F(-10°C~70°C), and humidity: ≤80%
