HIGHLIGHTS

  • Programmable Variable Digital Laboratory Bench DC Power Supply
  • Product Name: CENTURIO PRO
  • Brand Name: Ascend Electronics®
  • Place of Origin: USA
  • Input voltage: AC 115V 10% (United States) 50Hz/60Hz
  • Output Voltages: 20V, 30V, 60V and 80V
  • Output Currents: 7.5AV, 10A, 20A and 30A
  • Total Output Power: 600W and 900W
  • Interface capability: RS232/RS485/USB/Sense/Trigger-In/Analog-Control/SCPI
  • 4.3 inch TFT LCD display
  • Over load, over voltage, over current, over temperature & reverse polarity protections
  • CV and CC operations, auto CV and CC switch
  • Built-in beeper alarm
  • Panel lock and output ON/OFF function
  • 300 sets save & recall setups
  • Low resistance measurement function
  • Remote sense function

This is the title

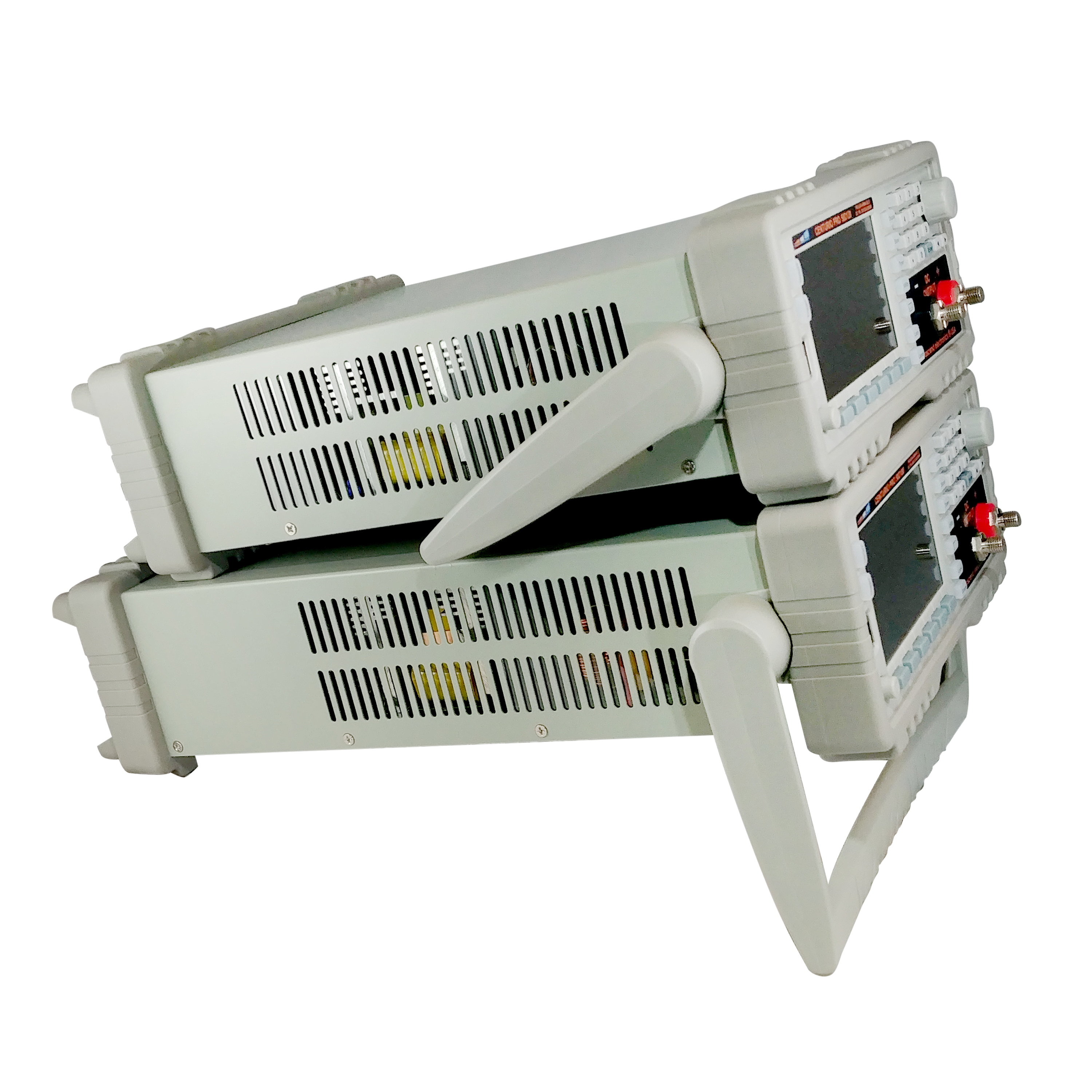

If you are looking for a powerful, easy-to-use, precision digital laboratory power supply, the Ascend Electronics’ CENTURIO PRO series is an excellent choice.

The professional programmable variable DC benchtop power supplies CENTURIO PRO covers a wide range of power, voltage, and current and is specifically designed for schools, laboratories, product development, and electronic research labs to provide you with a power supply that offers advanced unique features & capabilities.

The models include a wider operating range with high accuracy constant voltage and current option, precision read-back of output power, current and voltage, trigger signals, remote sense function, battery charge mode, USB host data storage & computer interfaces supporting SCPI commands, as well as the ability to create complex DC transients waveforms to test device behavior with voltage deviations.

Besides Labs, our DC Power Supplies are commonly used in telecom, battery charger, burn-in, and plating/electrolysis testing, and many other applications. The 4.3-inch TFT LCD gives full display for parameters and output waveforms.

The CENTURIO PRO is a cost-friendly and functional solution that’s made for people that need programmable, high accuracy constant voltage, current or power.

We know you have a choice when selecting a variable DC Power Supply, but the advantage of choosing Ascend Electronics is clear. Our U.S. based operation invests more in R&D than any other manufacturer, so you can be sure that you are getting the most out of your lab’s equipment budget.

Ascend Electronics switching DC power supply comes with everything you need to get started including online manuals, quick reference sheet and AC cord making it ideal for experiments at school, home or professional research.

More Control & More Stability We made the CENTURIO PRO DC switching power supply to offer more accuracy and reliability while making sure you can use it easily. You can easily adjust the voltage and current at a nominal value while the constant voltage and constant current operations help you maintain a stable output. All Instruments are equipped with an MPU (Memory Protection Units) controller to manage and access the internal memory. The MPU allows defining ranges with different permissions, can read fault information, and notifies the system of fault conditions. Besides remote controlling the unit with the fully compliant SCPI commands, the users can also store or recall data via the front panel USB host. Also, the units are equipped with standard 0-5V analog control.

Model

CENTURIO PRO 50D100

CENTURIO PRO 50D110

CENTURIO PRO 50D120

CENTURIO PRO 50D130

CENTURIO PRO 50D140

Rated output

0 to 40

Voltage

0V to 20V

0V to 30V

0V to 30V

0V to 60V

0V to 80V

Current

0A to 30A

0A to 10A

0A to 20A

0A to 10A

0A to 7.5A

O.V.P

0.1V to 24V

0.1V to 34V

0.1V to 34V

0.1V to 64V

0.1V to 88V

O.C.P

0.1A to 34A

0.1A to 12A

0.1A to 24A

0.1A to 12A

0.1A to 8.8A

Constant Voltage Operation



Line regulation

≤0.01%+4mV



Load regulation

≤0.1%+5mV



Ripple & Noise (20Hz~20MHz)

2mVrms, 30mVpp



Recovery time

≤1.5ms (50% load change)



Constant Current Operation



Line regulation

≤0.2%+3mA



Load regulation

≤0.2%+5mA



Ripple & Noise

≤10mArms



Display



Voltmeter

5 digits LCD display



Ammeter

5 digits LCD display



Setting resolution

1mV/1mA



Reading resolution

1mV/1mA



Voltage Setting accuracy (25±5)

±(0.03% of reading + 10mV)



Voltage Reading accuracy (25±5)

±(0.02% of reading +5mV)



Current Setting accuracy (25±5)

±(0.3% of reading + 10mA)



Current Reading accuracy (25±5)

±(0.3% of reading +10mA)



General



Protection

Over load, over voltage, over current, over temperature and reverse polarity protections



Panel lock

Provided



Remote sense function

Maximum compensation voltage 0.1V@ Maximum output



Battery charge

Lithium battery curve charge



Interface

RS232 interface, Support SCPI commands





0-5V analog control





Optional RS485 interface, support ModBus





RS232 to USB cable



Memory

100 sets internal save, support save to USB flash driver



Insulation

Between base and terminals: 60VDC



Operating environment

Indoor use Altitude: ≤2000m Ambient temperature: 0~40

Relative humidity: ≤80% Installation category: II Pollution degree: 2



Storage environment

-10℃ to 70, ≤70%RH



Power source

AC110V±10%    (AC220V±10%, 50/60Hz AVAILABLE)



Accessories

Power Cord





RS232 Cable





USB to RS232 Cable





Software CD   CENTURIO BENCH VIEW LIGHT ,  USB to RS232 Driver

       Optional   CENTURIO BENCH VIEW LIGHT





Manual



Dimension

(WxHxD)  8 ½ x 3 ½  x 13 7/8  Inch   (215 x 89 x 352 mm)



Weight

9.95 lbs.  (4.5kg)



Specifications are subject to change without prior notice





Model

CENTURIO PRO 50D150

CENTURIO PRO 50D160

CENTURIO PRO 50D170

CENTURIO PRO 50D180

CENTURIO PRO 50D190

Rated output

0 to 40

Voltage

0V to 15V

0V to 20V

0V to 30V

0V to 60V

0V to 80V

Current

0A to 60A

0A to 45A

0A to 30A

0A to 15A

0A to 11A

O.V.P

0.1V to 18V

0.1V to 24V

0.1V to 34V

0.1V to 64V

0.1V to 88V

O.C.P

0.1A to 62A

0.1A to 50A

0.1A to 34A

0.1A to 17A

0.1A to 12A

Constant Voltage Operation

Line regulation

≤0.01%+4mV

Load regulation

≤0.1%+5mV

Ripple & Noise (20Hz~20MHz)

2mVrms, 30mVpp

Recovery time

≤1.5ms (50% load change)

Constant Current Operation

Line regulation

≤0.2%+3mA

Load regulation

≤0.2%+5mA

Ripple & Noise

≤10mArms

Display

Voltmeter

5 digits LCD display

Ammeter

5 digits LCD display

Setting resolution

1mV/1mA

Reading resolution

1mV/1mA

Voltage Setting accuracy (25±5)

±(0.03% of reading + 10mV)

Current Setting accuracy (25±5)

±(0.3% of reading + 10mA)

Voltage Reading accuracy (25±5)

±(0.02% of reading +5mV)

Current Reading accuracy (25±5)

±(0.3% of reading +10mA)

General

Protection

Over load, over voltage, over current, over temperature and reverse polarity protections

Panel lock

Provided

Remote sense function

Maximum compensation voltage 0.1V@ Maximum output

Battery charge

Lithium battery curve charge

Interface

RS232 interface, Support SCPI commands



0-5V analog control



Optional RS485 interface, support ModBus



RS232 to USB cable

Memory

100 sets internal save, support save to USB flash driver

Insulation

Between base and terminals: 60VDC

Operating environment

Indoor use Altitude: ≤2000m Ambient temperature: 0~40

Relative humidity: ≤80% Installation category: II Pollution degree: 2

Storage environment

-10 to 70, ≤70%RH

Power source

AC110V±10%    (AC220V±10%, 50/60Hz AVAILABLE)

Accessories

Power Cord



RS232 Cable



USB to RS232 Cable



Software CD   CENTURIO BENCH VIEW LIGHT ,  USB to RS232 Driver

Optional   CENTURIO BENCH VIEW LIGHT



Manual

Dimension (WxHxD) 215x89x412mm

(WxHxD)  8 ½ x 3 ½  x 16 1/4  Inch   (215 x 89 x 412 mm)

Weight 5.5kg

12.2 lbs.  (5.5kg)

Specifications are subject to change without prior notice



  • Do not operate in flammable and explosive environment
  • Keep the product surface clean and dry
  • Input voltage: AC 115V 10% (United States) 50Hz/60Hz
  • Operating environment: 32~104°F(0~40°C), & humidity: ≤80%
  • Storage environment: 14°F~158°F(-10°C~70°C), and humidity: ≤80%
  • 1x DC Lab Power Supply CENTURIO PRO
  • 1x Power cord
  • 1x RS232 Extension
  • 1x Cable RS32 to USB Extension Cable
  • 1x Analog Control Female Plug
  • 2x Front Banana-Screw-On Conectors
  • 1x Quick Reference Guide Sheet
  • Online User Manuals
