LINEAR LAB DC POWER SUPPLY CENTURIO 507120

HIGHLIGHTS

A MULTI-CHANNEL: Quad 2x50V and 2x15V linear DC power supplies provide you with 4 independent channels for power
Input voltage: AC 115V 10% (United States) 50Hz/60Hz
Product Name: CENTURIO 507120
Brand Name: Ascend Electronics®
Place of Origin: USA
Output Voltage Main : 2x 0~50V/0~3A
Output Voltage Auxiliary : 2x 2.2~15V/0~1A
Single Supply Serial Mode: 1x 100V/3A
Single Supply Parallel Mode: 1x 50V/6A
Total Output Power: 330W
Low Audio and Power Signal Noise
4 reading displays
Over load, over voltage, over current, over temperature & reverse polarity protections
CV and CC operations, auto CV and CC switch
Output ON/OFF function

click on image to enlarge

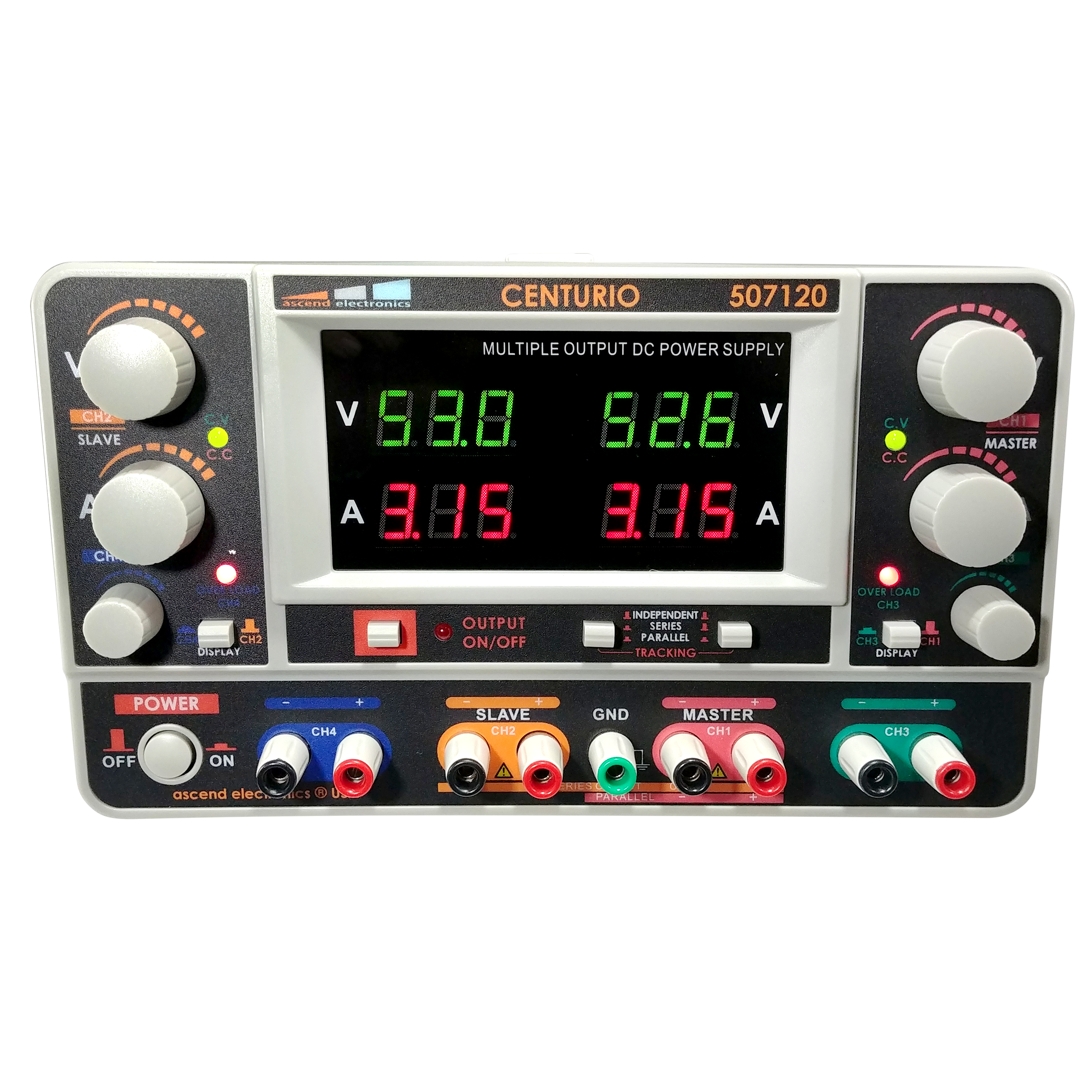

CENTURIO 507120

click on image to enlarge

MULTI-CHANNEL OUTPUT: The CENTURIO linear DC power supplies provide you with 4 independent channels for power output which include two main channels with 0~50V/0~3A output and two auxiliary channels with 2.2~15V output making it perfect for lab experiments where you needed multiple power sources
REGULATED & ADJUSTABLE OUTPUT: Using the dials on the front panel, you can easily adjust the 4 independent channels on the DC regulated power supply to output the current you want. It features built-in Auto Series and Parallel Operations and can maintain constant current and voltage operations
LOW NOISE & 4 READING DISPLAYS: Our adjustable power supply is designed with an automatic low noise cooling fan that keeps this multi-channel linear benchtop power supply at an operable temperature while offering a low level of output noise and ripple along with power stabilization
SMART & SAFE PROTECTION: Thanks to the 4 display design, you can easily view and adjust the Voltage or Ampere of the output. To ensure safe use, it’s made with limit current protection, thermal protection, voltage overload protection, and short-circuit protection
100% CUSTOMER SATISFACTION: We made this quad channel power supply to help you customize your experiments the way you like. If you aren’t satisfied with it, then let us know within 30 Days for a refund

Output Voltage:
- CH1 & CH2 Operation in Independent mode: 2x 0V to 50V/3A
- CH1 & CH2 Single Supply Serial Mode: 1x 0V to 100V/3A
- CH1 & CH2 Single Supply Positive & Negative Mode 1x 0V to ±50V/3A
- CH1 & CH2 Single Supply Parallel Mode 1x 0V to 50V/6A
All modes support in addition, CH3 & CH4 adjustable 2x 2.2V to 15V/1A
Total Output Power 330W
Constant Voltage Operation:
Line Regulation (CH1 & CH2) ≤0.01%+3mV
Load Regulation (CH1 & CH2) ≤0.02%+5mV
Ripple & Noise (5Hz~1MHz) ≤2mVrms
Display Accuracy ±(1% reading+2 digits)±(1% reading+2 digits)
Power Source AC110V 50/60Hz

SPECIFICATIONS CENTURIO 4 CHANNEL LINEAR BENCH TOP POWER SUPPLY

Model		CENTURIO 507100		CENTURIO 507110		CENTURIO 507120
Output Voltage		0V~30V x2 Or 0V~60V x1		0V~30V x2 Or 0V~60V x1		0V~50V x2 Or 0V~100V x1
Output Current		0A~3A x2 Or 0A~6A x1		0A~5A x2 Or 0A~10A x1		0A~3A x2 Or 0A~6A x1
Auxiliary Output		2.2V~15V/1A x2		2.2V~15V/1A x2		2.2V~15V/1A x2
Total Output Power		210W		330W		330W
Preset V&I		√
Output ON/OFF		√
Tracking Operation		√
Constant Voltage Operation
Line Regulation	≤0.01%+3mV
Load Regulation	≤0.01%+3mV		≤0.02%+5mV		≤0.01%+3mV
Ripple & Noise (5Hz~1MHz)	≤1mVrms		≤2mVrms		≤1mVrms
Constant Current Operation
Line Regulation	≤0.2%+3mA
Load Regulation	≤0.2%+3mA		≤0.2%+5mA		≤0.2%+3mA
Ripple & Noise	≤3mArms		≤6mArms		≤3mArms
Tracking operation
Parallel Line Regulation		≤0.01%+3mV
Parallel Load Regulation		≤0.02%+5mV
Series Line Regulation		≤0.01%+5mV
Series Load Regulation		≤300mV
Auxiliary Output (CH3/CH4)
Output Voltage		2.2V~15V
Output Current Fixed		1A
Load Regulation		≤25mV@110V/220Vac rated input
Ripple & Noise (5Hz~1MHz)		≤2mVrms
Display
Voltmeter		3 digits LED display
Ammeter		3 digits LED display
Resolution		100mV/10mA
Accuracy		Real voltage and current output: ±(1% reading+2 digits)
		Preset voltage and current: ±(1% reading+8 digits)
General
Operating Environment		0℃~40℃, ≤80%RH
Storage Environment		-10℃~70℃, ≤70%RH
Power Source		AC110V/220V±10%, 50/60Hz
Accessories		Power Cord x1, Online Operation Manual, Test Leads
Dimension (WxHxD)		10 x 6.1 x 12.2 Inch (255x155x310mm)
Weight		19 lbs. (8.5kg)	22 lbs. (10kg)		22 lbs. (10kg)
