3PH TRANSFORMERS

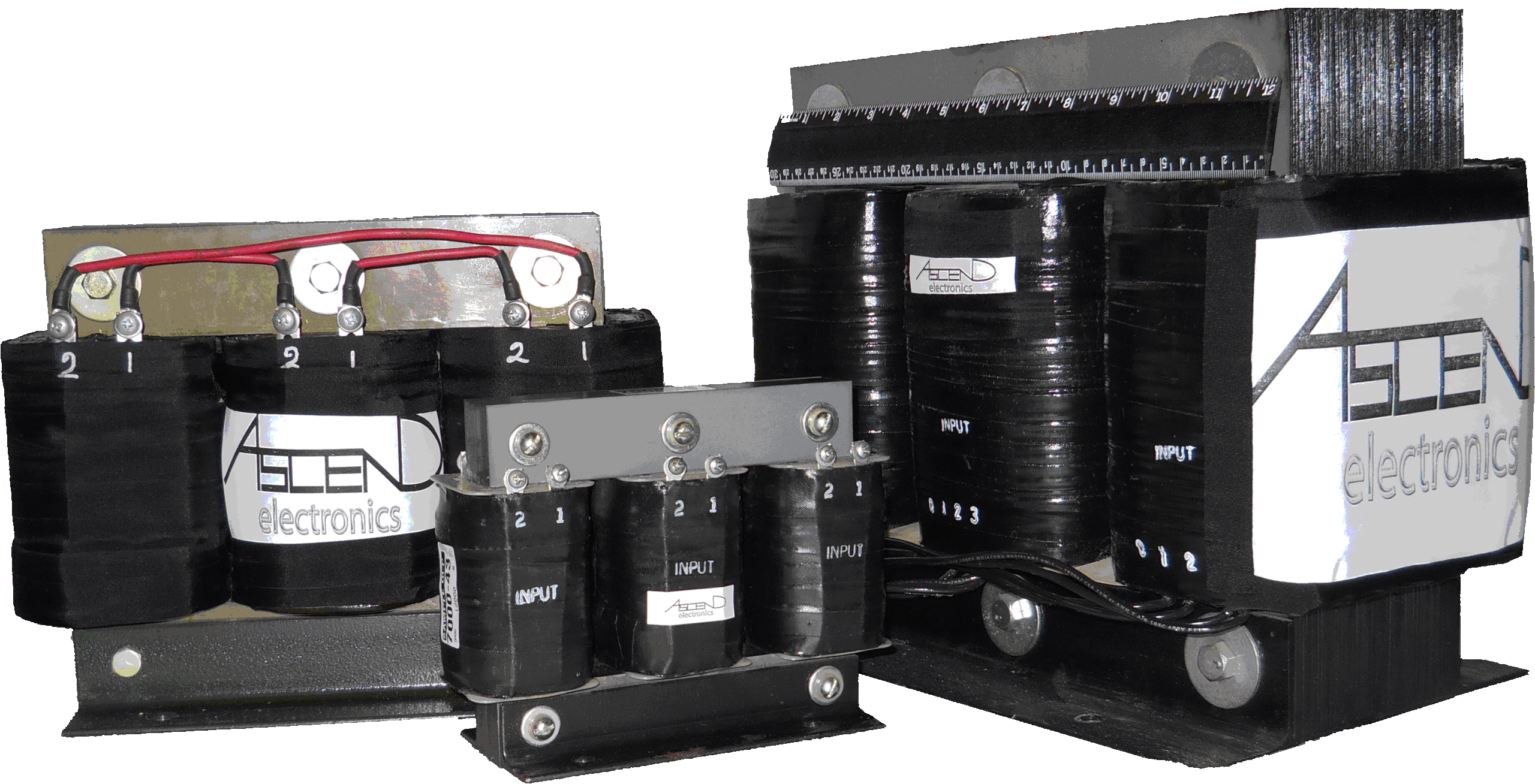

Ascend Electronics® 3-phase standard dry 50/60 Hz power transformers have an output power range from 1 VA to 75k VA and more. These transformers are conservatively designed using premium materials and quality workmanship to provide long life and reliability. The input and output can be connected either DELTA, WYE, ZIG-ZAG or 6-PHASE to drive different type of loads. These transformers are 100% tested for turns ratio, exciting current, phasing and high potential (HiPot).
Product Metrics (Standard 3-PH XFRMER)
|
Power Range |
1 VA to 200 kVA |
(standard) |
|
Input Voltage Ranges [Volt RMS] |
100 - 120, 220 -240, 380, 440 - 480, 600 |
Delta, Wye, ZigZag |
|
Output Voltage Range [Volt RMS] |
115, 120, 220, 230, 240, 480, 600 Volt |
Delta, Wye, ZigZag |
|
Multiple Input and Output Configuration |
Available |
Tap |
|
Frequency Range |
50, 60 and 400 Hz |
|
|
Temperature Class |
100°C, 130°C, 180°C |
|
|
Thermo Fuse |
Available |
Optional |
|
Phase |
Three Phase |
|
Other configurations are available.
